Capital expenditure in food manufacturing requires precise spatial planning. Underestimating facility dimensions leads to costly operational bottlenecks and compromised food safety. Plant managers and investors often focus strictly on primary machine dimensions. They fail to account for maintenance clearances, utility footprints, centralized control stations, and sanitary zoning required for continuous noodle production. Evaluating the true footprint of an instant rice noodle production line requires analyzing capacity targets, equipment configurations (such as fried vs. non-fried setups), and workflow layouts. You must look beyond the steel frames of the extruders and dryers. Real-world operations demand space for forklift traffic, raw material staging, and daily washdown procedures. This guide breaks down exact spatial requirements to support accurate facility selection and capital allocation. We will examine how different processing modules dictate your building's length, width, and ceiling height.
Capacity Dictates Footprint: A baseline instant rice noodle production line requires between 500 m² for entry-level outputs (100–300kg/hr) to over 2,000 m² for high-capacity operations (1,000kg+/hr).
Length is Critical: Continuous steaming, aging, and drying modules demand significant linear space; facilities typically need a minimum uninterrupted length of 40 to 60 meters.
Hidden Space Requirements: Production machinery only accounts for 40-50% of the required floor space. The remainder must be allocated to raw material storage, boiler rooms, water treatment, PLC control centers, and finished goods warehousing.
Compliance and Zoning: Strict separation between raw processing (low-care) and post-cooking/packaging (high-care) necessitates dedicated physical barriers and worker transition zones that increase the overall facility footprint.
To calculate total space, operators must understand the physical dimensions of each distinct processing module. You must know how they connect and understand the specific mechanical drives utilized. A production plant operates as a highly integrated mechanical ecosystem. Each zone requires specific spatial tolerances for daily operation, sanitation, and heavy maintenance.

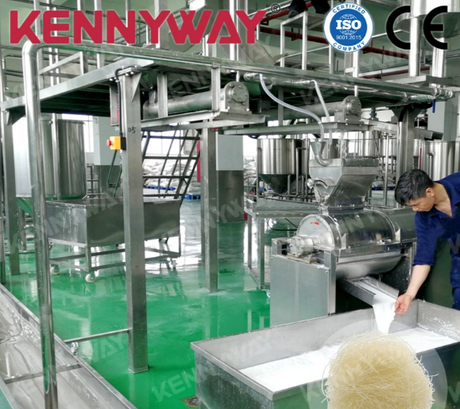

The front end of your facility handles bulk ingredients. Space is required for automated salt and water mixers, liquid measuring machines, and large-scale double-shaft noodle mixing equipment. These machines vibrate heavily during operation. They require reinforced flooring and ample clearance for operators to load ingredients safely. A standard industrial mixer often sits on a raised mezzanine. This mezzanine requires structural supports and staircase access, which easily consumes a 4x4 meter footprint on the ground floor.
Vertical space requirements are frequently overlooked in the mixing zone. Automated flour silos require significant ceiling height. A standard 10-ton indoor silo demands at least 6 to 7 meters of vertical clearance. Rice soaking tanks demand vertical space for loading mechanisms and overhead hoists. Pneumatic conveying systems run above the equipment, transporting flour and starches directly to the mixers. You must allocate floor space for dust collection systems. Dust extraction units are bulky but mandatory to prevent combustible dust hazards and maintain respiratory safety for workers.

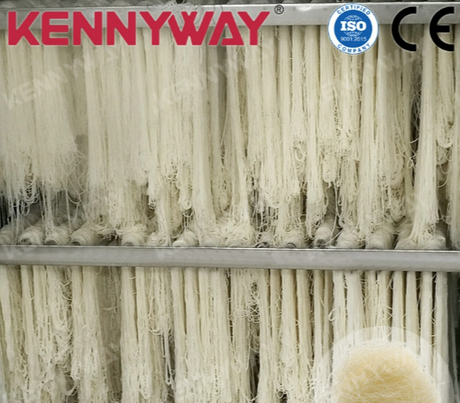

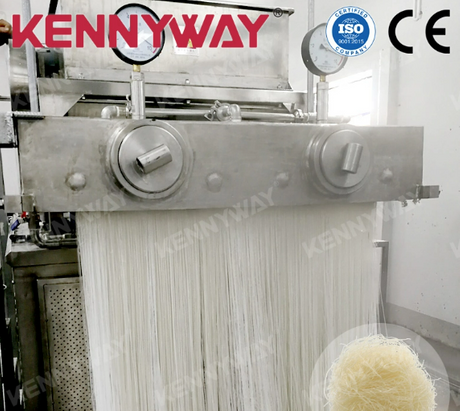

The cooking and resting phases dictate the linear length of your facility. Producing Instant Rice Vermicelli requires longer processing lines than standard wheat noodles. Rice starch gelatinization is a complex thermal process demanding extended steaming tunnels. A medium-capacity line often utilizes a steaming tunnel exceeding 20 meters in length. Multi-stage aging conveyors are also mandatory. These aging tunnels allow the moisture inside the extruded noodles to equalize. Without adequate aging space, the final product becomes brittle and shatters during packaging.
Footprint variations occur based on product type. Lines designed for wider flat rice noodles require broader conveyor belts and wider steaming tunnels compared to standard vermicelli lines. This increases the overall width of the processing corridor. You must allocate space for heavy-duty chain drive systems alongside the tunnels. The mechanical infrastructure needed for precise adjustment functions takes up room. Regulating cooking speed and water flow requires accessible gearboxes, drive motors, and variable frequency drives (VFDs) mounted in localized electrical panels.

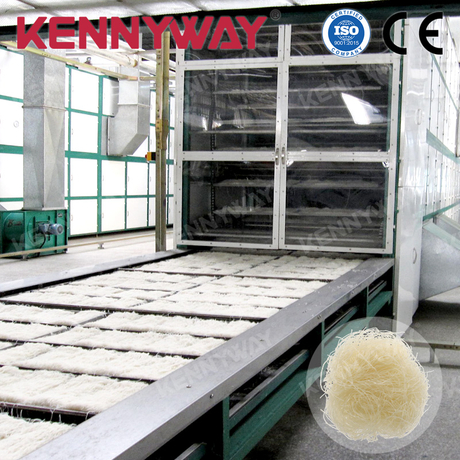

Moisture removal defines the back end of the processing line. Evaluating the spatial trade-offs between drying methods is necessary for accurate facility selection. Non-fried hot-air drying tunnels require a significantly longer linear footprint and utilize multi-tier vertical space. A continuous hot-air dryer might feature five to seven layers of conveyors. This requires high ceilings and robust structural supports. The length of a multi-tier dryer can easily exceed 25 meters, with additional space needed at the discharge end for cooling fans.
Continuous deep-frying modules are generally shorter in linear length. However, they introduce entirely different spatial demands. You must allocate footprint for massive exhaust hoods and oil vapor extraction ductwork. Oil storage tanks require dedicated, fire-rated rooms with spill containment berms. Often, bulk oil storage is placed outside the main building on a concrete pad. Ventilation infrastructure specific to fried lines is extensive. You need space for external heat exchangers, continuous oil filtration units, and automated fire suppression systems surrounding the fryer.
Packaging operations consume a massive portion of the floor plan, often matching the footprint of the processing line itself. Space allocation is required for multi-head weighers, which sit on elevated platforms. Cup and bowl dispensers need staging areas for packaging materials. Pillow-pack wrappers require long infeed conveyors to properly space the noodle blocks before sealing. Before packaging, noodles must cool down to ambient temperature. Overhead cooling conveyors are often utilized to save floor space, but they still require vertical clearance and structural mounting points.
End-of-line automation requires wide operational corridors. Footprint requirements for case packers and palletizers are substantial. Robotic palletizing cells require safety fencing, adding a perimeter that consumes valuable square meterage. Automated guided vehicle (AGV) pathways must be mapped out on the floor. AGVs require dedicated charging stations and wide turning radiuses. Forklift traffic must be physically separated from pedestrian zones using steel guardrails. Accumulation tables are necessary before the case packers. These rotary tables hold product if a downstream machine jams, preventing upstream line stoppages.
Matching target output to minimum square meterage ensures operational viability. You cannot squeeze a high-capacity continuous line into a small warehouse. The physical dimensions of the machinery scale directly with output. Below is a breakdown of facility requirements based on kilograms per hour.
An entry-level facility requires an estimated 500 to 800 square meters. This scale suits regional brands, specialty flat rice noodle producers, and pilot facilities testing new product formulations. Small-scale lines often utilize semi-automated packaging to save capital and space. This approach requires denser manual labor zones. You need space for workers to manually load bowls, guide film rolls, and pack finished cartons.
The machinery at this scale is more compact. Steaming tunnels are shorter, and drying modules have fewer tiers. However, you still need distinct physical zones for raw materials and finished goods. Utility rooms can be smaller, but they remain mandatory. A small gas-fired boiler and a basic water filtration system will suffice. Maintenance clearances can be slightly tighter, but safety access for sanitation crews must not be compromised.
A medium-capacity plant requires an estimated 1,000 to 1,500 square meters. This represents the industry standard for national distribution. It requires fully automatic continuous lines where manual intervention is minimized. Dedicated utility rooms are essential to house larger boilers and air compressors. Expanded raw material staging is required to feed the continuous process without interruption.
At this scale, the steaming and drying tunnels expand significantly in length and width. You need longer aging conveyors to handle the increased throughput. Packaging automation becomes complex. Multiple wrapping machines operate in parallel, requiring diverter conveyors. Automated case packers replace manual boxing stations. The facility must accommodate wider forklift aisles, typically 3.5 meters wide, to allow standard counterbalance forklifts to maneuver safely. Inventory turnover is faster, demanding highly efficient warehouse racking layouts.
High-volume operations require 2,000+ square meters. These facilities are designed for global export volume. They often feature dual-lane processing, where two parallel lines run simultaneously. Massive continuous drying tunnels dominate the floor plan. Fully automated end-of-line robotics handle all palletizing and stretch-wrapping tasks. The sheer scale of these plants requires meticulous architectural planning and heavy-duty floor slabs capable of supporting immense static loads.
Mega plants utilize exterior bulk silos for flour and rice. Pneumatic conveying systems route materials hundreds of meters through the facility. The utility demands are enormous. Large industrial boilers and comprehensive wastewater treatment plants are required on-site. The packaging hall resembles a separate factory entirely. Multiple AGVs navigate the floor continuously. Strict physical barriers separate every production zone to maintain hygiene standards. Maintenance workshops, complete with lathes and welding stations, are built directly into the facility to handle immediate repairs.
Production Capacity vs. Minimum Space Requirements
Target Output (kg/hr) | Estimated Floor Area (m²) | Target Application | Packaging Automation Level |
|---|---|---|---|
100 - 300 | 500 - 800 | Regional Brands, Pilot Plants | Semi-Automated / Manual Assist |
500 - 800 | 1,000 - 1,500 | National Distribution | Fully Automatic Continuous |
1,000+ | 2,000+ | Global Export, Mega Plants | Robotic / Advanced AGV Integration |
How you arrange the equipment depends entirely on the architectural constraints of the building. You must fit a continuous process into a finite space while maintaining logical material flow. The layout dictates operational efficiency, impacts product quality, and determines maintenance accessibility. Choosing the right configuration prevents future bottlenecks and reduces material handling labor.
This is the most efficient configuration for an instant rice noodle production line. A straight-line setup requires a long, narrow facility. The building is often 60 to 100 meters in length. Raw materials enter at one end through the receiving docks. Finished goods exit at the opposite end through the shipping docks. This creates a perfect unidirectional workflow that naturally prevents cross-contamination.
A linear layout minimizes product transfer points. Every time noodles change direction on a conveyor, there is a risk of jams. Breakage occurs easily at transfer points where product drops from one belt to another. A straight line eliminates these risks. It simplifies the mechanical drive systems. A single main drive shaft can often power multiple consecutive modules, reducing electrical complexity. Maintenance technicians have a clear line-of-sight down the entire production floor, allowing them to spot issues instantly.
These configurations are necessary for square or irregularly shaped facilities. You cannot always find a 100-meter-long building in your desired industrial park. U-shaped layouts fold the production line in half, bringing the packaging end back toward the raw material receiving area. L-shaped layouts bend the line around a corner to fit within property lines. These designs require specialized 90-degree or 180-degree turning conveyors.
There are significant mechanical trade-offs with bent layouts. Turning mechanisms require additional maintenance space. They feature complex gearboxes, curved belts, and specialized tensioners. These components wear out faster than straight belts and require frequent replacement. Turning sections complicate continuous tension control. Delicate rice vermicelli is prone to stretching or snapping during turns if the belt speed is not perfectly synchronized. You must allocate extra footprint for the wide radius of these turning conveyors, as sharp turns will destroy the noodle blocks.

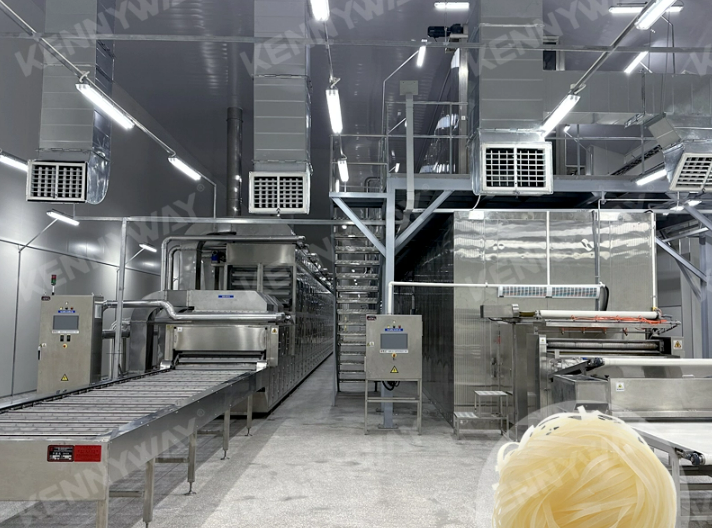

Floor space is only one dimension of facility planning. Vertical space is equally critical. Minimum ceiling height requirements are typically 5 to 7 meters. You must accommodate overhead cooling conveyors that transport noodles above the working floor. Exhaust hoods above steamers and fryers require significant vertical clearance. Large stainless steel ductwork must route through the ceiling to exterior roof vents.
Operators need safe access to the top of the machinery. Stainless steel catwalks are mandatory for continuous lines. These elevated walkways allow workers to monitor the steaming and drying processes, clear jams, and clean overhead components. Catwalks require sturdy support columns bolted to the floor. The staircases leading to these catwalks consume ground-level floor space. Proper vertical planning keeps the ground floor clear for material handling equipment and sanitation carts.
A facility is non-viable if it only fits the primary machinery. Ancillary spaces dictate overall plant efficiency and safety. Many plant managers underestimate the footprint of utilities. They forget about storage staging and hygiene zones. These hidden requirements often consume more total space than the production line itself.
Rice noodle production is highly water-intensive and steam-intensive. Space requirements for industrial boilers are substantial. Boilers must be housed in dedicated, fire-rated rooms separated from the main production floor. These rooms must be located on exterior walls to facilitate ventilation, exhaust stacks, and safety blow-off valves. You need space for fuel storage, whether it involves natural gas metering stations or exterior diesel tanks.
Steam headers, pressure reduction valves, and condensate return tanks require clearance for pipefitters to work. Wastewater treatment plants (WWTP) are necessary to meet environmental discharge compliance. Noodle factories generate starch-heavy wastewater that clogs municipal sewers. You must allocate outdoor or basement space for equalization tanks. Aeration basins, settling tanks, and sludge presses take up significant square meterage. You cannot operate legally without this infrastructure.
Modern production lines rely on advanced automation. Dedicated floor space is required for main electrical cabinets. Centralized control panels manage complex adjustment functions. Operators control temperature zones, chain drive speeds, and moisture levels from these stations. Localized Human-Machine Interfaces (HMIs) are mounted near the machines, but the main processing brains require a safe environment.
Control rooms must be isolated from the main production floor. They must be kept away from high-heat and washdown zones. Water and sensitive electronics do not mix. The control room requires independent climate control to prevent PLCs from overheating. It needs raised flooring or overhead cable trays for massive wire routing. Placing electrical cabinets too close to steamers results in premature component failure due to heavy condensation.
Calculating the ratio of production space to storage space is vital for continuous operation. The industry standard is often 1:1 or 1:1.5. If your production line occupies 1,000 square meters, you need at least 1,000 to 1,500 square meters of storage. Continuous lines consume raw materials rapidly and output finished goods just as fast. Without buffer space, the line must shut down.
Climate-controlled storage is required for raw rice and flour. High humidity ruins bulk ingredients, causing clumping before it even reaches the mixer. Finished goods warehousing needs high-bay racking systems. You must plan for forklift aisles between the racks. Staging areas are required for shipping and receiving docks to inspect incoming goods and wrap outgoing pallets. Without adequate storage, a high-capacity line will choke on its own output.
Food safety regulations dictate facility layout. Strict separation between raw processing and post-cooking zones is mandatory. The footprint required for hygiene stations is non-negotiable. Workers must pass through a controlled transition flow. They need locker rooms to change into sanitary gear. Boot wash stations, hand sanitizing turnstiles, and air showers require plumbing and drainage space at the entrance of high-care zones.
Physical separation walls must be built between zones. Raw material handling generates airborne dust. Packaging requires clean room environments. You must build corridors that prevent cross-contamination. Positive air pressure systems in the packaging room require bulky HVAC units mounted on the roof or mezzanine. These transition zones and physical barriers increase the overall facility footprint significantly but guarantee audit compliance.
Utility and Ancillary Space Estimations
Facility Zone | Estimated Space Requirement | Key Infrastructure Needed |
|---|---|---|
Boiler & Steam Generation | 50 - 100 m² | Fire-rated walls, exterior venting, fuel storage, water softeners. |
Wastewater Treatment | 100 - 300 m² (Often exterior) | Equalization tanks, aeration basins, sludge presses. |
Sanitary Transition Zones | 30 - 60 m² | Locker rooms, boot scrubbers, air showers, hand wash stations. |
Electrical & PLC Control | 20 - 40 m² | Climate control, raised flooring, cable trays, fire suppression. |
Avoidable spatial errors lead to operational downtime. Poor planning during the facility design phase creates permanent bottlenecks. Once concrete is poured, floor drains are set, and machinery is bolted down, changes are incredibly expensive. Recognizing these common failures prevents catastrophic project delays and budget overruns.
Failure to leave adequate space around machines is the most common layout error. You must leave 1.5 to 2 meters of clearance around extruders, steamers, and fryers. Sanitation crews need room to maneuver pressure washers and foamers. Maintenance technicians need space to pull heavy components using engine hoists or pallet jacks.
The consequences of tight clearances are severe. You will face an inability to remove machine shafts for bearing replacement. Lubricating chain drives becomes dangerous or impossible. Properly washing down stainless steel components becomes difficult, leading to bacterial buildup and compliance failures. Forklifts will inevitably crash into machinery if aisles are too narrow, causing structural damage to the line.
Designing a tight floor plan prevents future growth. You might install a single line today. In three years, market demand may require a second line. If your building is maxed out, you must relocate the entire operation, incurring massive downtime. Upgraded packaging automation, such as adding robotic palletizers later, also requires more space than manual packing stations.
Factoring in a 20% spatial buffer during initial facility selection is the best mitigation strategy. Leave empty floor space next to the primary line. Size your boiler, air compressors, and utility rooms to handle future capacity from day one. It is cheaper to lease a slightly larger building now than to move a heavy industrial plant later.
Designing layouts where raw material pathways cross finished-product pathways is a critical failure. Forklifts carrying dusty flour bags should never drive past open cooling conveyors. Workers from the raw mixing zone should not walk through the packaging hall to reach the breakroom.
Implementing unidirectional flow designs mitigates this risk. Materials must flow in one continuous direction from raw to finished. Entrances and exits must be segregated. Waste removal pathways must be isolated from ingredient delivery pathways. Failing to map these workflows results in failed food safety audits, product recalls, and revoked manufacturing licenses.
The footprint of an instant rice noodle production line extends far beyond the dimensions of the primary machinery. Successful facility planning requires a holistic view of capacity, utility infrastructure, mechanical drive access, and sanitary compliance. You must account for every valve, conveyor, storage rack, and forklift turning radius. When evaluating equipment suppliers, prioritize those who provide comprehensive 2D and 3D CAD layouts. These layouts must include maintenance zones, catwalks, control panel placements, and utility connections. Do not accept basic machine footprints. A true partner engineers the entire facility workflow.
Define your target capacity in kilograms per hour to establish your baseline square meterage and utility loads.
Determine your product variations, such as flat rice noodles versus vermicelli, to dictate belt widths and tunnel lengths.
Finalize your drying method to understand your vertical and linear space constraints, as well as fire-suppression needs.
Map out unidirectional workflows for materials, personnel, and waste to ensure strict food safety compliance.
Request a preliminary layout schematic from your chosen equipment manufacturer before signing a facility lease or pouring concrete.
A: While dependent on capacity, a continuous automated line typically requires a minimum uninterrupted straight-line length of 40 to 60 meters. This length accommodates the extrusion, extended steaming, aging, and drying tunnels without utilizing complex turning conveyors that cause product breakage.
A: Instant Rice Vermicelli requires longer aging and steaming processes compared to standard wheat noodles. This extended gelatinization and moisture equalization generally results in a 15-20% larger footprint for the processing section of the facility.
A: Yes. Non-fried hot-air drying modules require longer linear space and higher ceilings for multi-tier conveyors. Continuous fryers are more compact but require dedicated, fire-rated space for bulk oil storage, exhaust ductwork, and advanced fire-suppression systems.
A: A minimum ceiling height of 5 to 7 meters is recommended. This vertical space accommodates overhead cooling lines, exhaust ventilation hoods above steamers, tall flour silos, and elevated stainless steel maintenance walkways required for operator access.
A: Industry best practice suggests a 1:1 to 1:1.5 ratio. For every 1,000 square meters of active production space, you should plan for 1,000 to 1,500 square meters of combined raw material staging and finished goods warehousing to prevent operational bottlenecks.
